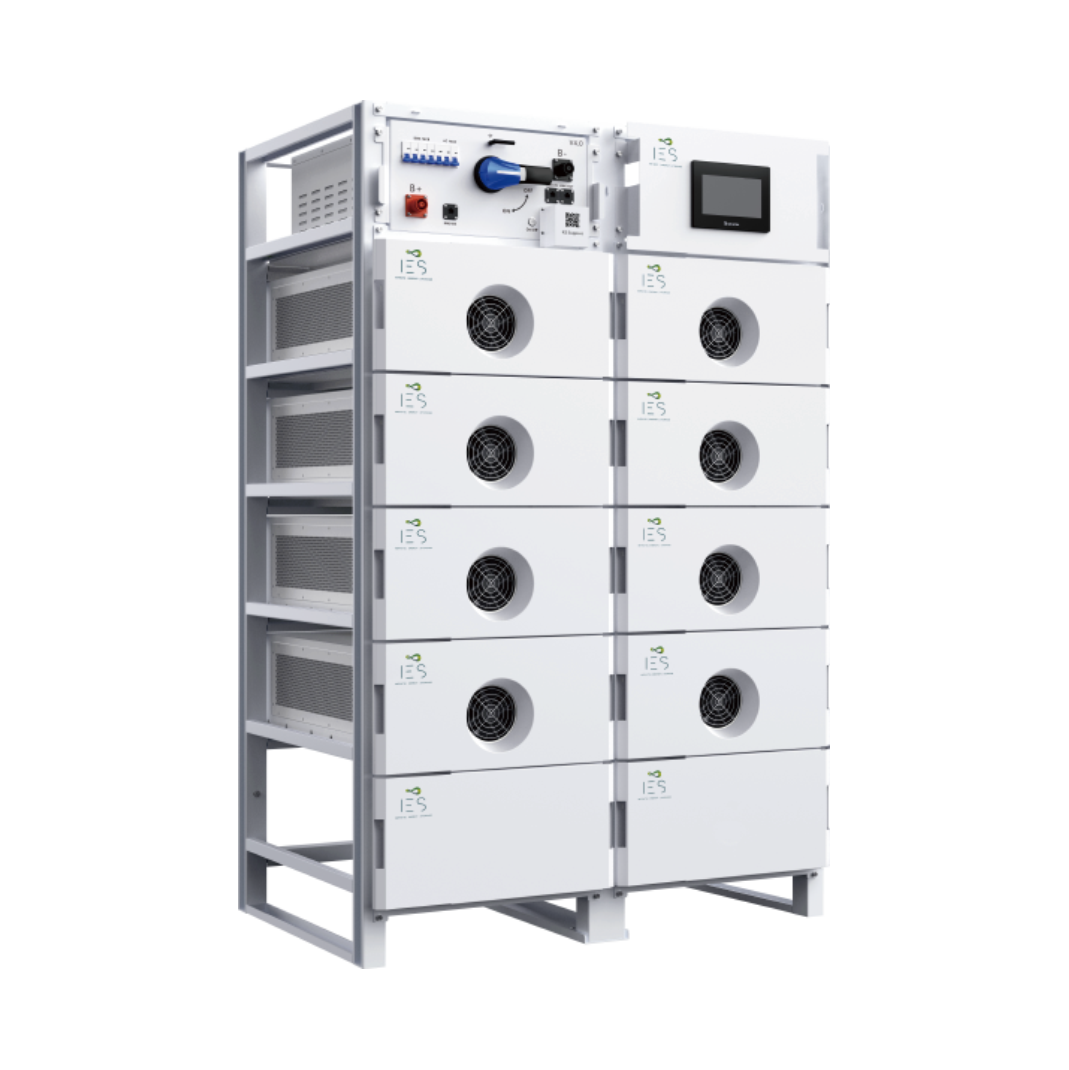

IES BATT 128R
Indoor LFP battery rack with IP20 protection, eight 16 kWh modules, integrated 2-/3-level BMS and front-maintenance design. Compatible with mainstream PCS inverters from MegaRevo, Sunsynk, Deye, Solplanet, Solis and Atess. Scales to 30 units in parallel.
-
Safe & Reliable
Self-developed 2-level / 3-level BMS with multi-stage protection.
-
Quick Commissioning
Long cycle life of 8 000 cycles at 80% DOD.
-
High Density
High-capacity LFP cells in a compact rack footprint.
-
Cell Balancing Technology
Advanced active cell balancing across modules.
-
Easy Installation & Maintenance
Local + remote management, standard rack and module design, front maintenance.
-
Indoor IP20 Rack
Indoor battery rack with IP20 protection and inbuilt lithium-ion battery + BMS.
Technical detail.
High Voltage Range
- Battery Module
- 16.076 kWh, 51.2 V, 113.2 kg (249.56 lbs)
- Number of Modules
- 8
- Cell Technology
- LFP (LiFePO₄)
- Battery Usable Energy
- 128.614 kWh
- Nominal Voltage
- 409.6 V
- Operating Voltage
- 358.4 V – 449.28 V
- Nominal Output Current
- 157 A / 314 A
Communication
- Display
- LED Indicator, LCD Display
- Communication
- Ethernet / CAN / RS485 / Wi-Fi / LAN
General Specification
- Dimensions (W×D×H)
- 1142 × 840 × 1776 mm | 44.9 × 33.1 × 69.9 in
- Weight
- 1 155 kg (2 547 lbs)
- Operating Temperature
- -20 °C to 60 °C (-4 °F to 140 °F)
- Environmental Humidity
- ≤ 95% RH (non-condensing)
- Protection Rating
- IP20
- Cycle Life
- 8 000 cycles or 10 years @ 80% DOD / 25 °C / 0.5 C, 70% EOL
- Scalability
- Version 4: 30 in parallel
- Application
- On-grid / On-grid + backup / Off-grid
Standard Compliance
- Cell
- UN38.3 / IEC62619 / UL 1642 / JET
- Pack
- UN38.3 / IEC62619 / IEC61000
Compatible PCS / Inverter Brands
MegaRevo: MEGA/MPS 0030 & MEGA/MPS 0050 · 50 kW: Sunsynk / Deye / Solplanet / Solis · Atess: HPS Range
